Setting up the VBOS Hub as a meeting room solution (1.1)

  • Updated

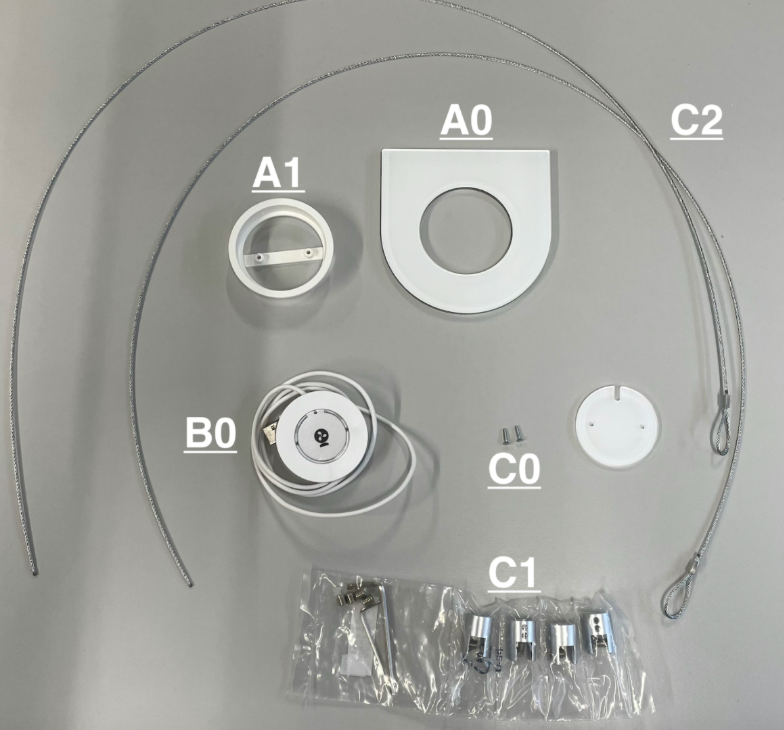

List of components

A0 - Backplate x1

A1 - Hub Ring x1

B0 - VBOS Hub x1

C0 - Hub Ring screws x2

C1 - Solution screw block x2

C2 - Solution hanging cables x2



Setup steps:

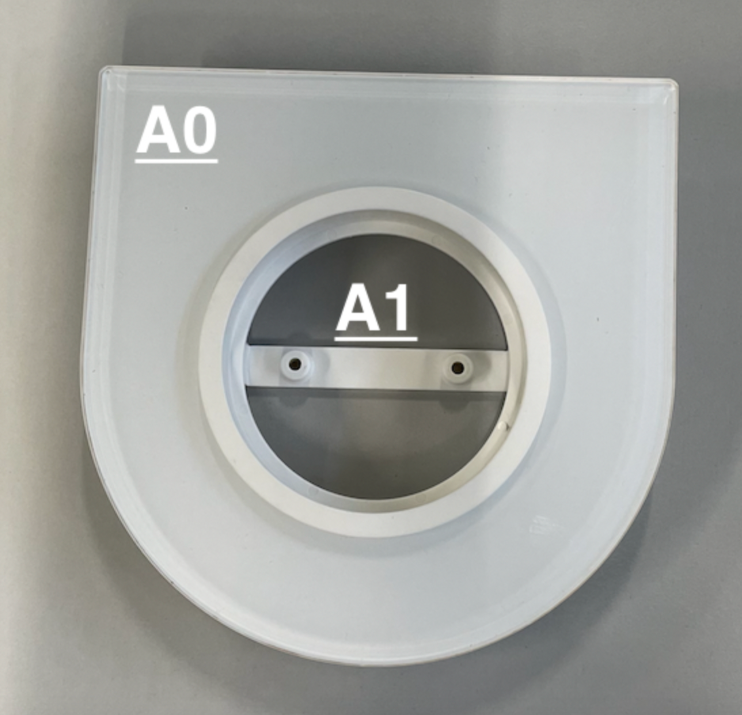

1. Place the Hub Ring (A1) into the Backplate (A0). Make sure the screw holes are horizontally aligned. The components should click firmly into place.

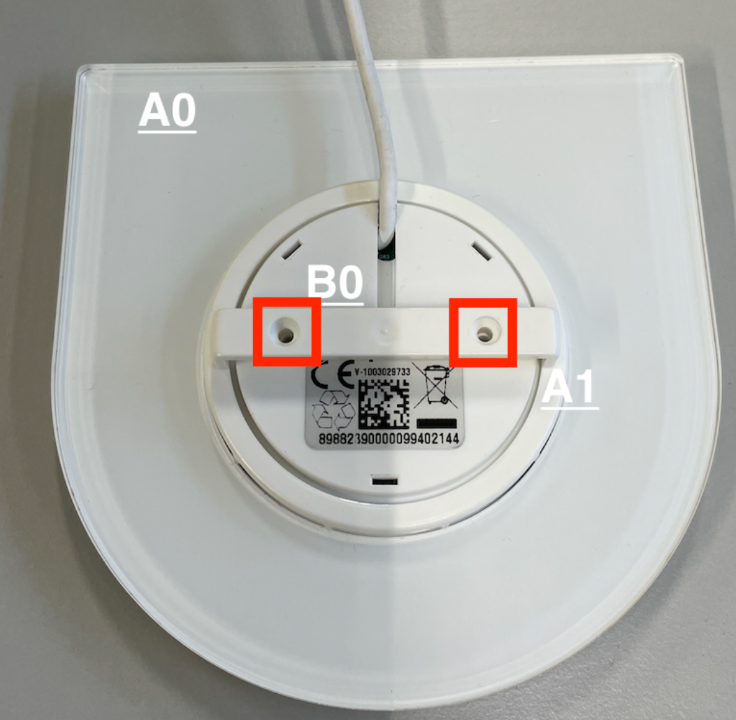

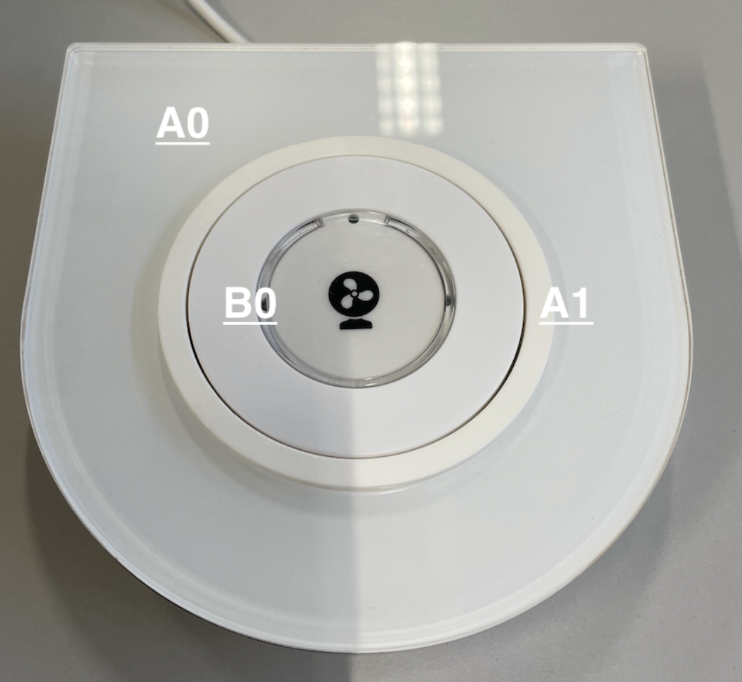

2. Place VBOS Hub (B0) into the Hub Ring (A1). Make sure the screw holes are aligned with the screw holes of the Hub Ring (A1).


The VBOS Hub should fit fully into the Hub Ring slot.

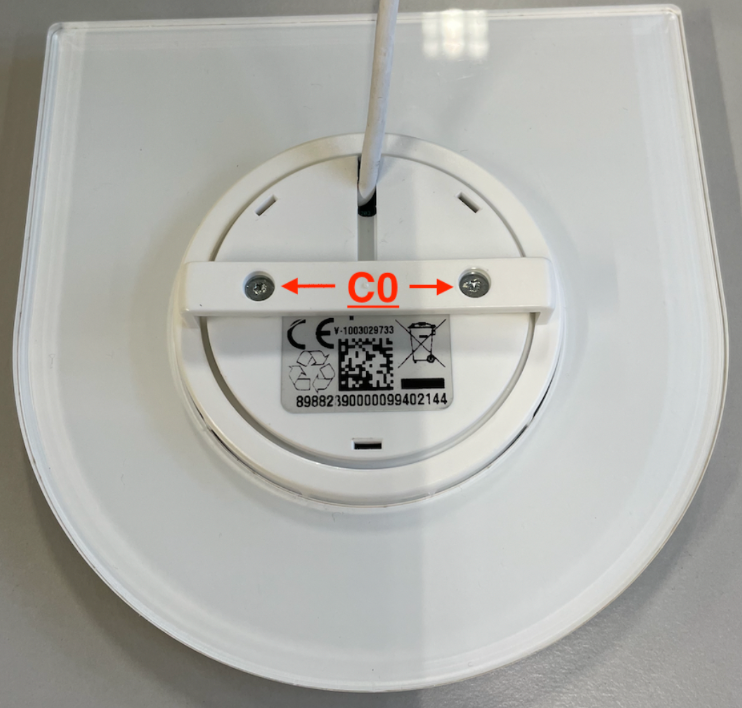

3. Screw the Hub Ring screws (C0) into the Hub Ring screw holes.

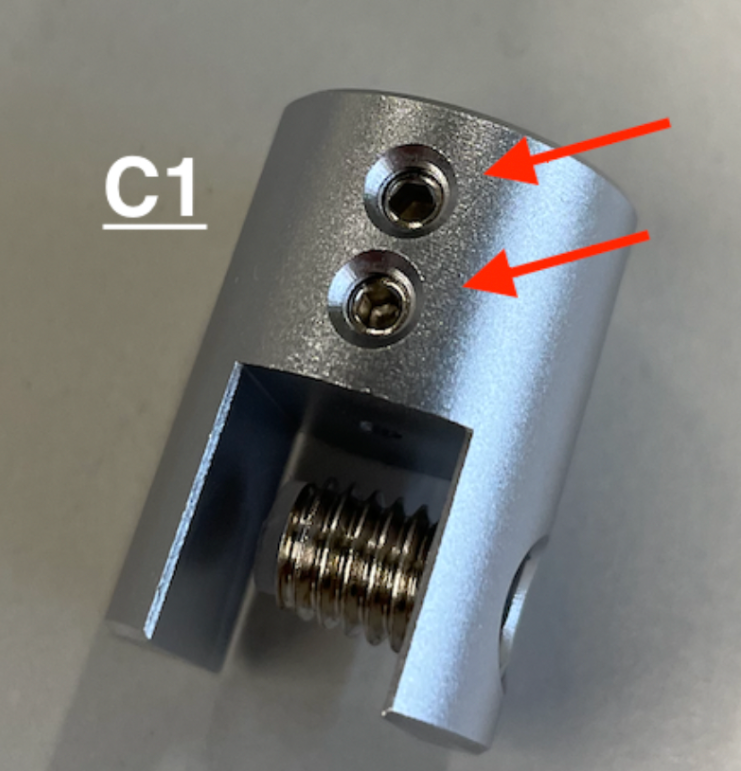

4. Loosen the small screws on the side of the Solution screw block (C1).

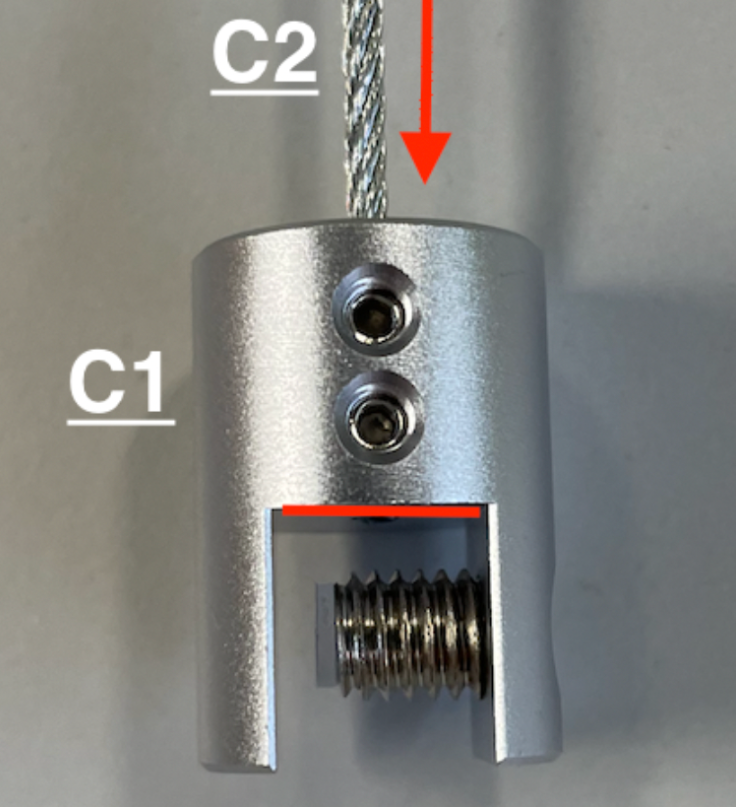

5. Insert a Solution hanging cable (C2) into the Solution screw block (C1). The end of the cable should align with the hole on the other side without sticking out.

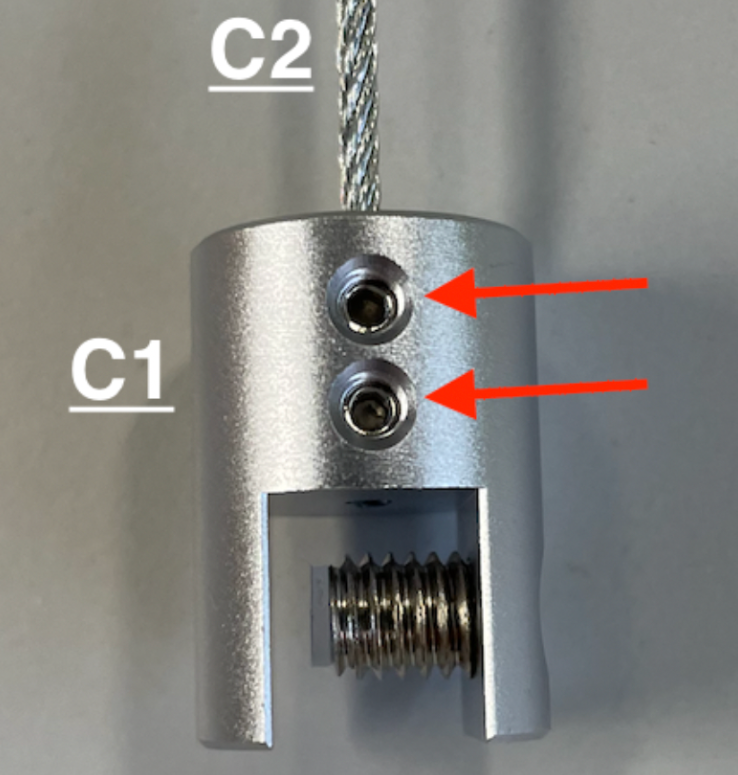

6. Tighten the small screws on the side of the Solution screw block (C1), securing the hanging cable in place.

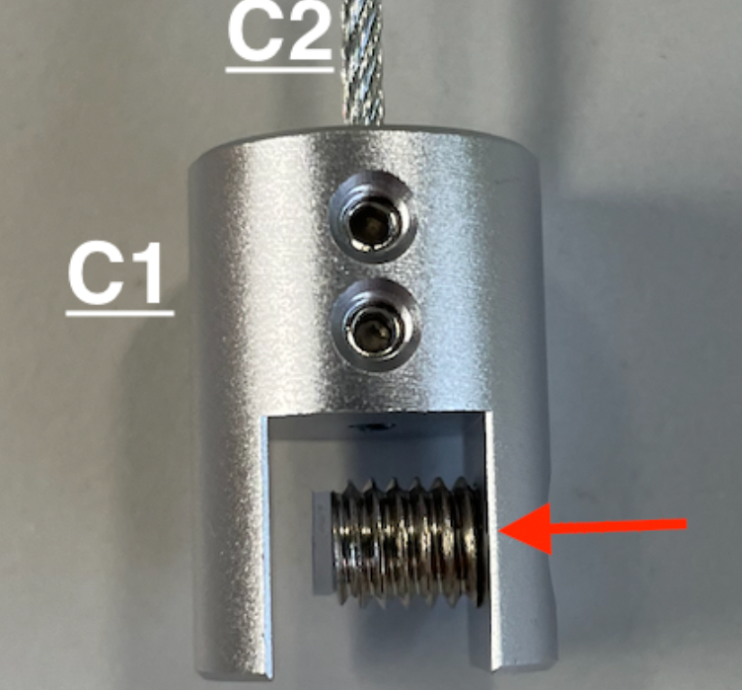

7. Loosen the big screw on the bottom of the Solution screw block (C1).

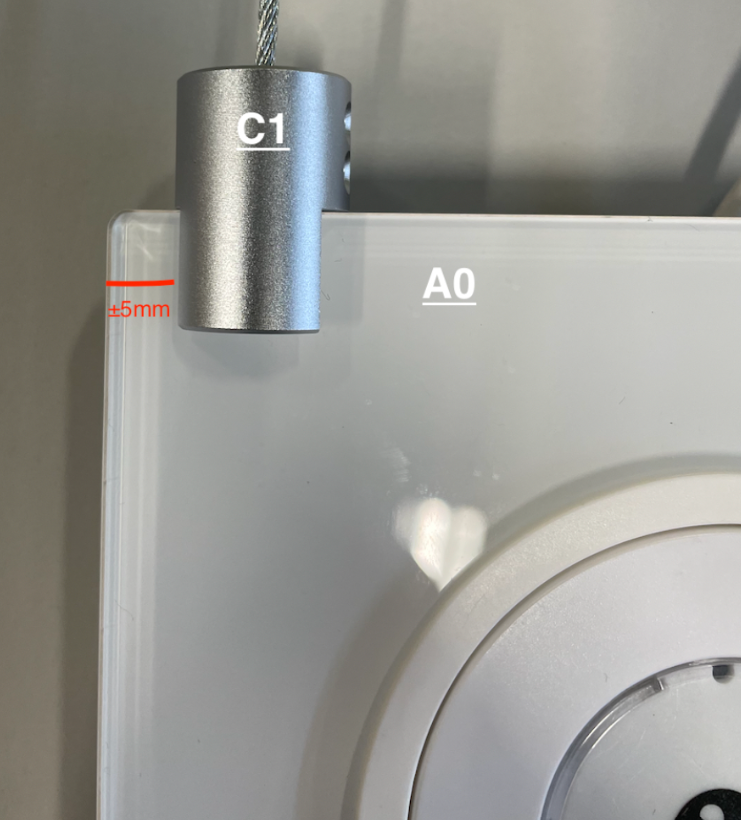

8. Place the Solution screw block (C1) over the edge of the Backplate (A0), approximately 5 mm off the side.


9. Tighten the big screw on the bottom of the Solution screw block (C1) securing the Solution screw block (C1) to the Backplate (A0).
10. Repeat steps 3-8 for the other side of the Backplate (A0).

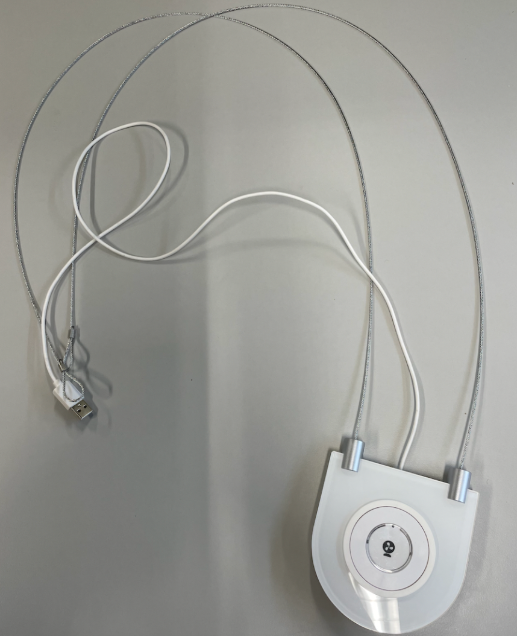

The setup of the VBOS Hub Room Solution is now complete! Hang the VBOS Hub Room Solution according to the product sheet and your environment specifications.
