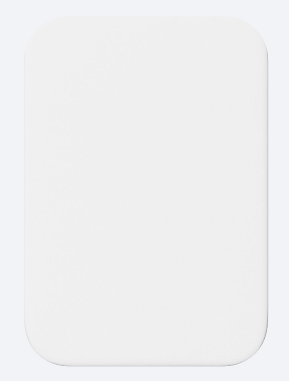

The Wireless CO₂ Sensor uses NDIR technology to measure CO₂ and also tracks temperature, relative humidity, and barometric pressure. Measurements are securely transmitted to the cloud via nearby Cloud Connectors using SecureDataShot™, enabling real time indoor air quality monitoring and demand-controlled ventilation.
Technical specifications of UC1
Mechanics & design
Housing material: Polycarbonate (PC)
Color: White
Sensor technology:
CO₂: Non-Dispersive Infrared (NDIR)
Temperature, Humidity, Pressure: CMOS
Operating temperature range: 0°C to 50°C
Operating humidity range: 0% to 95% RH (noncondensing)
Storage conditions: Cool and dry, near room temperature
Mounting method: Adhesive or screws (wall-mounted, breathing height 1–1.8 m)
Size & weight
95 × 66 × 25 mm; 116 g
Band and mode / Output power
Radio Protocol: SecureDataShot
EU Radio Frequency: 868 MHz SRD band
US Radio Frequency: 915 MHz ISM band
Communication range (2nd Gen Cloud Connector): up to 250 m indoors, 10 km free space
Power
Battery powered Battery type: 2 × AA Alkaline
Battery life: Up to 10 years
Battery replaceable: Yes
Data security:
Sensor data is encrypted using symmetric AES-128 encryption in CCM-mode.
Package content
1 × Wireless CO₂ Sensor Mounting adhesive or screws (depending on configuration)
Scalability
Communication range of sensor to gateway: up to 250 m (indoors, with 2nd Gen Cloud Connector)
1 gateway can provision for thousands of sensors
Fully cloud-managed connectivity with automatic scaling – no pairing required
Certification
EU: CE, UKCA
US/Canada: FCC, ISED
FCC ID: 2ATFX-102540
IC: 25087-102540
Customs
HS Code: 8517620800
ECCN: 5A992.c
Multi Climate CO2 Sensor
Installation
Preparations
Before using the Wireless CO₂ Sensor, read the safety, installation, and operation instructions to ensure proper use. Please contact officespacessupport@vodafone.com for any questions.
Intended use
The Wireless CO₂ Sensor is designed for indoor use to monitor air quality parameters including CO₂, temperature, relative humidity, and barometric pressure. It uses NDIR technology for CO₂ measurement and securely transmits data via Cloud Connectors using SecureDataShot™. This data enables real-time indoor air quality monitoring (IAQ) and demand-controlled ventilation (DCV).
Motion Sensor
The product’s main functions are:
- Measuring CO₂ concentration (ppm), temperature (°C/°F), relative humidity (%RH), and barometric pressure (hPa).
- Transmitting sensor data to the cloud via SecureDataShot™.
- Providing continuous network status updates to ensure the sensor remains online and functional.
- Allowing configuration of Heartbeat Interval to match application requirements (2.5–60 minutes).
Mounting and commissioning
The Wireless CO₂ Sensor is designed for wall mounting at breathing height (1–1.8 m).
Placement: Install at least 1 m away from doors, windows, exterior walls, air vents, or heating/cooling sources for accurate measurement.
Mounting process:
1. Pull the battery tab to activate the sensor.
2. Mount the sensor to the wall using either: Option 1: Adhesive strip (peel and stick).
3. Mount the sensor to the wall using either: Option 2: Screw mounting (use wall anchor if necessary).
4. Ensure the device is mounted vertically, with unobstructed airflow.
Activation
The sensor is configured, using a smartphone app (‘setup app’ in Google’s PlayStore or Apple’s Appstore). In essence this setup app allows you to synchronize the sensor to a VBOS device, so that the sensory data is transmitted to the smart workspace platform. Once the configuration of the product is finalized the sensor data can be displayed in dashboards or accessed as raw data.
Maintenance & Care
The sensor housing can be dusted or cleaned with a damp cloth. Do not use solvents or abrasive cleaning agents. Replace batteries (2 × AA Alkaline) when required by removing the housing and observing polarity.
Disposal
Electrical and electronic equipment, accessories, and packaging must be recycled in an environmentally responsible manner. Do not dispose of electrical and electronic equipment as household waste.
EU countries only: In accordance with the European Directive on Waste Electrical and Electronic Equipment (WEEE), products no longer suitable for use must be collected separately and recycled appropriately.
Warranty
A warranty period of 12 months applies to the product, commencing on the first day of use of the product. The warranty solely covers inadequacies caused by material defect or manufacturing defect.
The warranty does not cover any unauthorized use or tampering with the product, such as product overloading, use of violence or force, damage as a result of any unauthorized interference or caused by foreign items.
Failing to follow the safe conditions or safe installation condition instructions and common wear are also not included in the guarantee. Visit Terms of Service - iotspot to view more about the terms, conditions and guarantee of this product.
